High Resolution X-ray Diffraction Studies of the Natural Minerals of Gas Hydrates and Occurrence of Mixed Phases

Unlocking the Mysteries of Natural Gas Hydrates: Structural Insights and Energy Potential

Natural gas hydrates—solid crystalline structures that trap gas molecules within water cages—are a frontier of scientific inquiry and technological potential. Found predominantly in marine sediments, permafrost regions, and polar ice, these fascinating materials have captured the attention of researchers and energy experts alike. Their unique structures, vast energy reserves, and implications for climate change and energy extraction make gas hydrates a subject of immense interest. This blog post dives deep into the structural studies of natural gas hydrates, as highlighted in the research by Yousuf and Qadri, supplemented by additional insights from related studies.

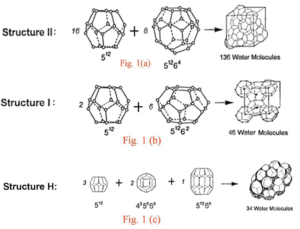

Figure 1: Unit cells of hydrate structures II (a), I (b), and H (c). The building blocks are in the form of cages formed by water molecules. Structures I and II have two types of cages; structure H has three types of cages.

What Are Gas Hydrates?

Gas hydrates, also known as clathrate hydrates, are crystalline solids formed under high-pressure and low-temperature conditions. They consist of water molecules forming a lattice structure that encages gas molecules, primarily methane. Methane hydrates are particularly significant as they are estimated to hold more carbon than all other fossil fuels combined. These hydrates are commonly found in geological settings such as:

• Marine Sediments: Found in oceanic environments like the Gulf of Mexico and the Cascadia Margin.
• Permafrost Regions: Stable methane hydrates exist in the frozen grounds of Arctic regions.
• Polar Ice Sheets: Formed due to air inclusions and stable conditions at specific depths.

The formation of gas hydrates depends on factors like natural gas migration, temperature and pressure conditions, and the chemical composition of the environment.

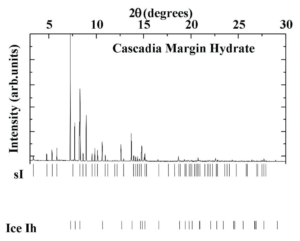

Figure 2: Powder diffraction pattern for the hydrate sample of Cascadia Margin, showing major constituents are ice Ih and hydrate sI.

Structural Diversity of Gas Hydrates

The study of natural gas hydrates has revealed three primary structural types:

1. Structure I (sI): A simple cubic structure stabilized by medium-sized guest molecules such as methane. Each unit cell consists of two dodecahedral (512) and six tetrakaidecahedral (51262) cages.
2. Structure II (sII): A face-centered cubic structure stabilized by slightly larger molecules like propane and iso-butane. This structure includes eight hexakaidecahedral (51264) and sixteen dodecahedral (512) cages per unit cell.
3. Structure H (sH): A more complex hexagonal structure that requires the presence of a helper gas (e.g., methane) to stabilize larger guest molecules like methylcyclohexane. The unit cell comprises three types of cages—dodecahedral (512), irregular dodecahedral (435663), and icosahedral (51268).

These structures exhibit diverse physical and chemical properties, making their study essential for understanding hydrate formation, stability, and dissociation.

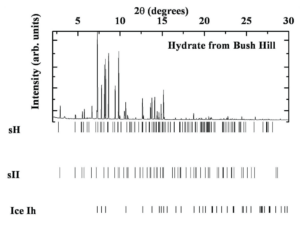

Figure 3: X-ray Powder diffraction pattern for the hydrate sample from Bush Hill, Gulf of Mexico. The major structures of the sample are ice Ih and hydrate sII.

Key Findings from High-Resolution X-Ray Diffraction Studies

In their groundbreaking research, Yousuf and Qadri used high-resolution angular dispersive X-ray diffraction to analyze natural gas hydrates collected from various geographical locations, including:

1. Cascadia Margin (Northeastern Pacific Ocean):
   • Predominantly methane-rich hydrates with biogenic origins.
   • Structural analyses revealed a cubic sI structure with ice Ih coexisting.
2. Bush Hill (Gulf of Mexico):
   • Hydrates contained 72-74% methane and higher hydrocarbons.
   • Samples exhibited sII and ice Ih structures, along with minor traces of sH.
3. Green Canyon (Gulf of Mexico):
   • Composed of 66-70% methane, with ethylene and cyclohexane as secondary components.
   • Exhibited sII and ice Ih structures, with some evidence of sI and sH traces.

These findings highlight the complexity of natural gas hydrates and their dependence on geographic and environmental conditions. For instance, the stronger ice Ih peaks in Cascadia Margin samples suggest lower hydrate concentrations compared to the more methane-rich Bush Hill and Green Canyon samples.

Experimental Techniques and Challenges

The research employed cutting-edge technology to analyze the hydrates’ structural properties:

• Sample Collection: Natural hydrates were retrieved from depths of 540 to 600 meters using submarine vessels.
• Powder Preparation: Samples were finely powdered and loaded into aluminum piston-cylinder assemblies for analysis.
• X-Ray Diffraction: High-resolution diffraction data were collected using synchrotron radiation at the Advanced Photon Source, Argonne National Laboratory.

Despite these advancements, replicating the complex natural processes responsible for hydrate formation in laboratory settings remains a challenge. Natural hydrates often display mixed phases, influenced by a myriad of geophysical and microbiological factors.

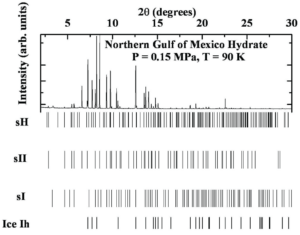

Figure 4: Powder diffraction pattern for the hydrate sample from Green Canyon, Northern Gulf of Mexico. The major structures of the sample are ice Ih and hydrate sII. A major conclusion gleaned from the powder pattern is that the quantity of hydrate samples is much more than ice.

Applications and Implications

The study of natural gas hydrates has far-reaching implications for energy, climate, and technology:

1. Energy Resource:
   • Gas hydrates represent a vast untapped energy reservoir. Technologies for economically viable extraction are being developed, focusing on minimizing environmental risks.
2. Climate Change:
   • Methane, a potent greenhouse gas, can be released during hydrate dissociation. Understanding hydrate stability is crucial for predicting and mitigating climate impacts.
3. Technological Advancements:
   • Insights from hydrate structures inform the design of advanced materials for gas storage and separation technologies.

Conclusion and Future Directions

The structural studies of natural gas hydrates by Yousuf and Qadri offer invaluable insights into their formation, stability, and potential applications. However, many questions remain unanswered, such as the precise mechanisms of hydrate dissociation and their interaction with surrounding environments.

Future research should focus on:

• Developing high-resolution nuclear techniques to identify natural gases in hydrates more accurately.
• Conducting long-term monitoring of hydrate deposits to assess their stability and potential as energy resources.
• Exploring the ecological and environmental impacts of large-scale hydrate extraction.

The journey to unlock the potential of natural gas hydrates is just beginning, promising exciting developments in science and technology.
